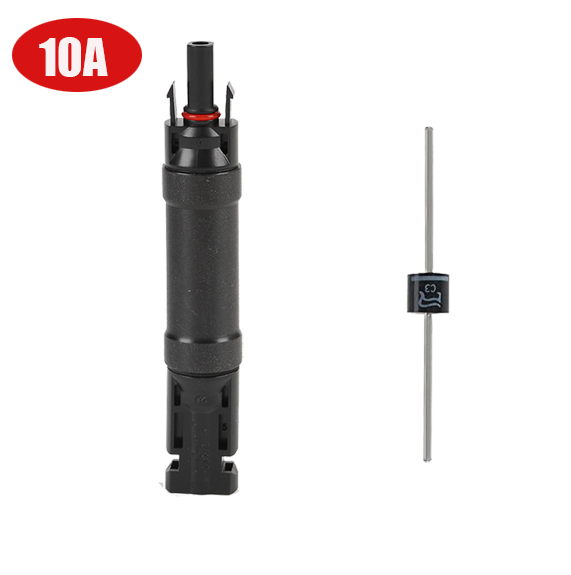

Solar Panel PV Cable Connector Built in 10A Diode M C 4 in-Line Fuse Solar Wire Connector Solar PV System IP68 Waterproof Anti-backflow
Main Features:
PPO INSULATION FLAME RETARDANT MATERIAL with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain,snow storm or heat for a long time; WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion.
Practical and easy connector used between Solar panel and switch box to prevent the reversal of current.
Contacts for the connector are copper coated with tin for easy solder adhesion.
Each end nuts comes with rubber bushings for air tightening.
TUV approved & Quick and easy connection of the solar cables to the photovoltaic system (solar panels, converters).
Specification:
Rated current :  10A
Rated voltage:   45V DC
Overvoltage category/Polution degree:CATIII/2
Contact resistance of plug connectosr: 0.5mΩ
Contact material: Copper,Ag Plated
Insulation material : PPO
Degree of protection: IP67
Flame class  :  UL94-V0
Temperature range: -40~+125℃
Package Includes:
1 x 10A Diode Built-in MC4 Solar Connector
