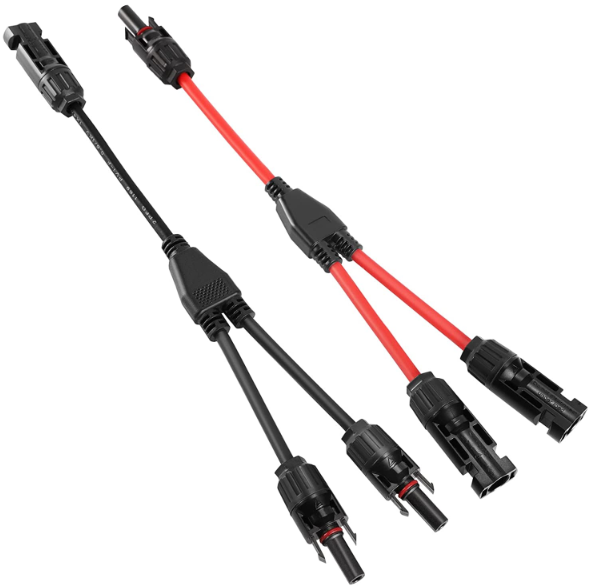

Solar Connectors Y Branch Parallel Adapter Cable 1 to 2 Solar Panel Connectors Wire Plug Tool Kit for Solar Panel (1 Male to 2 Female and 1 Female to 2 Male)
Main Features:
- 100% brand new and high quality
- Made of high-quality material, durable and practical to use
- Branch Connectors Conductor pin is tinned Copper: made of PPO + PA material. It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load
- This y cable is designed to complete a solar panel (PV) array, typically in parallel applications. Red to red, black to black, Better to recognize polarity.
Specifications:
Insulation Material: PPO Rated Current: 30A (4mm2)
Rated Voltage: DC1000V
Contact Resistance: ≤5mΩ
Insulation Resistance: >500mΩ
Operating Temperature range: -40 degree Celsius until + 90 degree Celsius
Degree of Protection: IP67
Flame Class: UL94-V0
Wire Size: 4mm²
Package Contents:
1 Pair x Y Branch Connector
