3m Solar Cable Set – 4mm², MC4 Connectors, 12AWG, IP67 Rated

Product Description & How to Use:

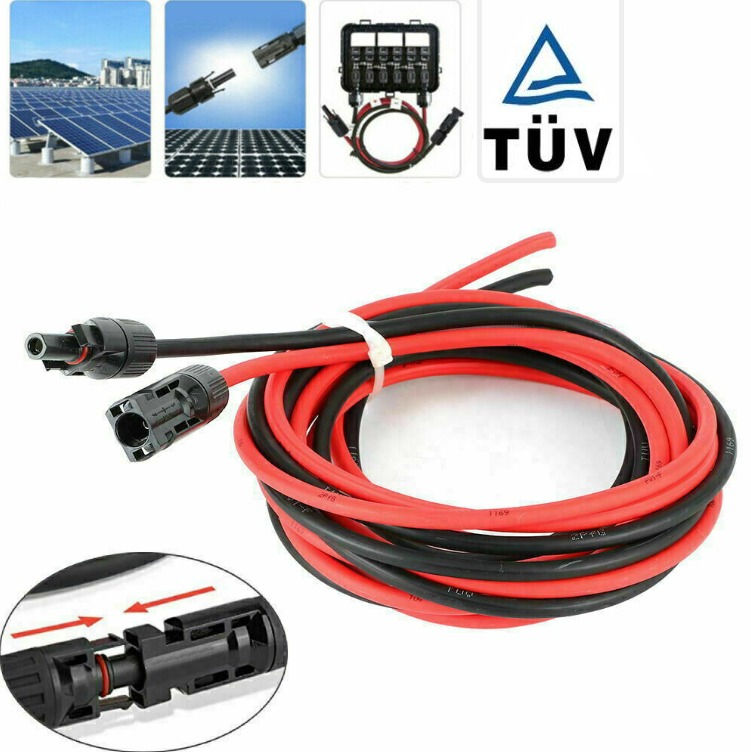

- 3m red and 3m black solar extension cables with MC4 connectors
- High current capacity, UV/flame resistant, IP67 waterproof
- Ideal for solar panel and controller connections

Features:

- MC4 Connectors: Male and female ends
- High Current Capacity: Rated up to 35A
- Double Insulation: Enhanced safety
- Wide Temp Range: -40°C to +120°C
- UV & Flame Resistant
- Abrasion Resistant & Flexible
- Soft & Easy to Strip
- All-Weather Adaptability

Specifications:

- Cable Size: 4mm² / 12AWG
- Length: 3m Red + 3m Black
- Conductor: Stranded, tinned copper
- Outer Diameter: 4 mm
- Sheath Material: PE
- Number of Cores: 2
- Ingress Protection: IP67
- Nominal Voltage: 600/1000V AC
- Rated Voltage: AC 0.6/1kV, DC 0.6/1.8kV
- Rated Current: 35A
- Conductor Resistance: ≤5.9 Ω (20°C)
- Interface Type: DC/AC
- Ambient Temp Rating: >25 years (TUV)
- Standards: IEC 60332-1, IEC 61034, EN 50268-2, DIN 51900
- Certifications: TUV & UL approved

Notes:

- Compatible with most solar panels and controllers
- Ideal for off-grid, RV, marine, and residential solar systems
- Visit our store for matching solar accessories and tools
